平整度测试 Flatness Measurement

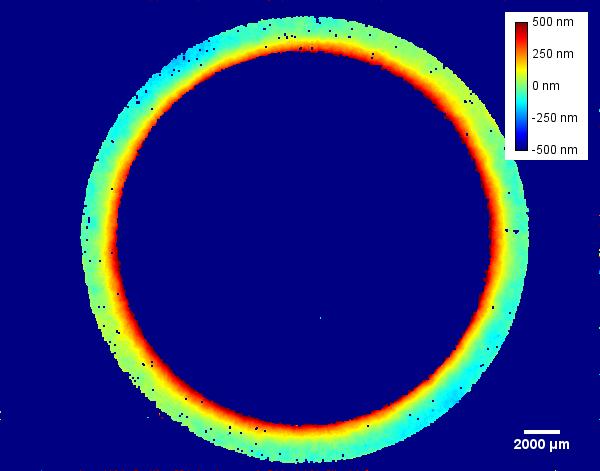

Large FOV sensor for flatness measurement
Flatness measurement requires large field of view and sub-nanometric vertical resolution. The lens-less sensor and the holographic macroscope are ideal for such application.
Description
- Material : polished steel
- Size : ⌀30 mm
- Instrument : Holographic macroscope
- Field of view : 32 mm x 32 mm

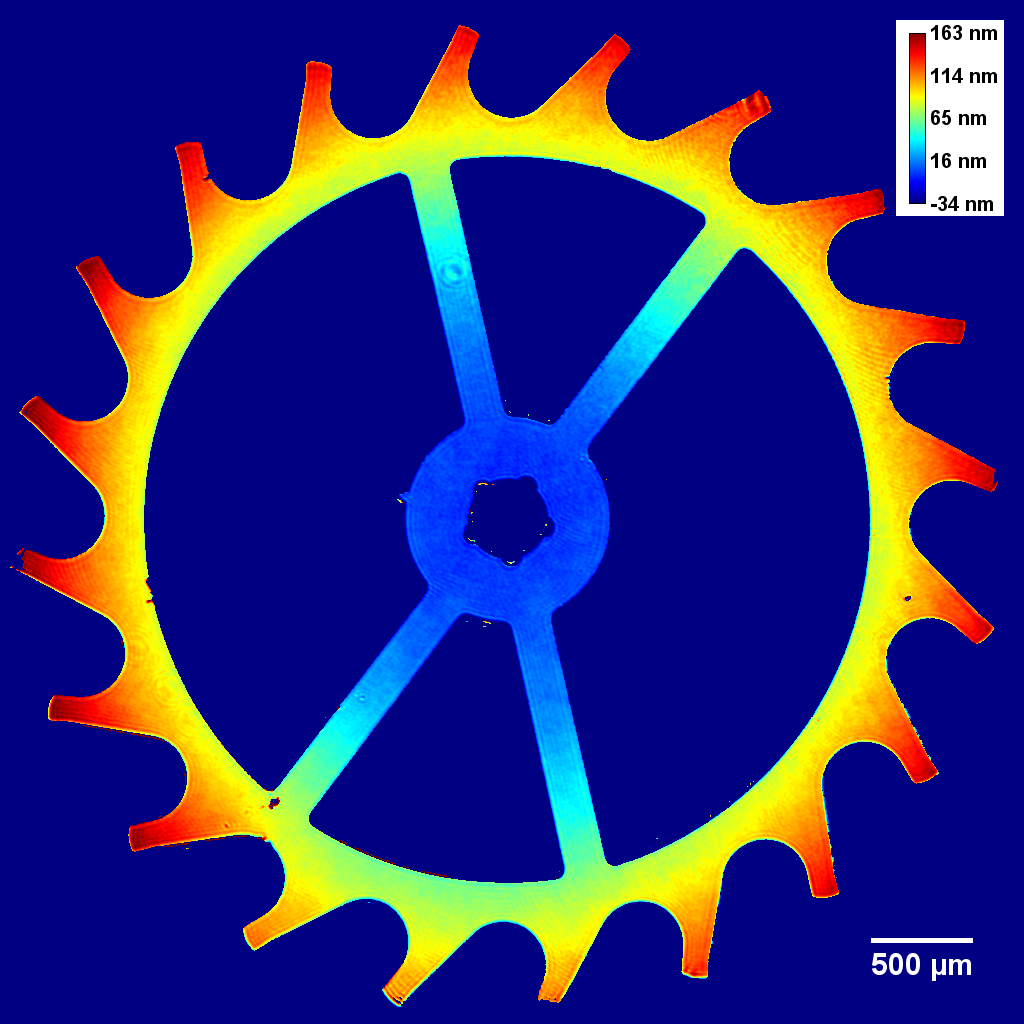

Full FOV for watch parts
Flatness measurement is critical for quality control in watch making industry. DHM provides ultra fast 3D mapping on watch parts, e.g. wheel, for both in-line measurement and R&D.
Description
- Material : Silicon steel
- Size : ⌀5 mm
- Instrument : DHM R2200
- Objective: 1.25x
