The MEMS Analysis Tool is a post-analysis software. It provides quantitative and precise space and frequency analysis of the 3D time sequence of topographies (4D) recorded by DHM® for both periodical and non-periodical phenomenons.

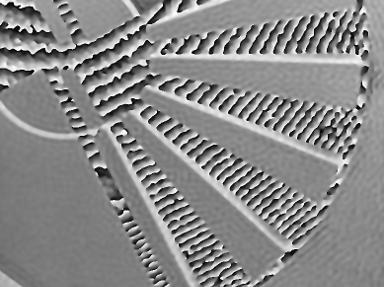

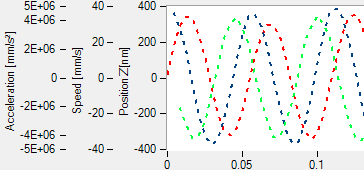

MEMS Analysis Tool contains powerful algorithms to analyze 3D time sequence of MEMS topographies in term of in- and out-of-plane displacements.

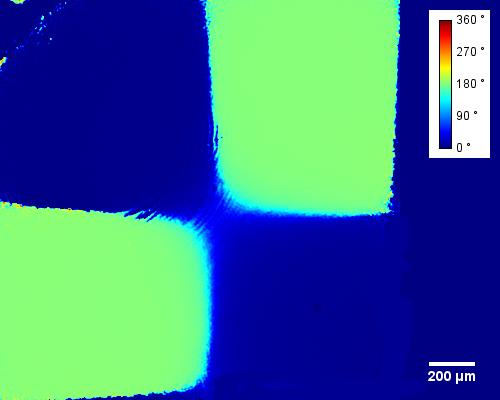

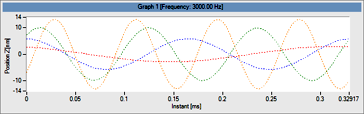

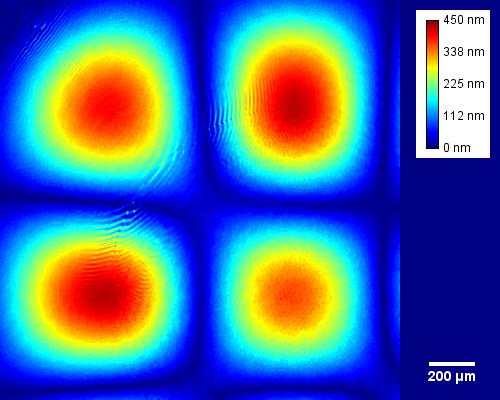

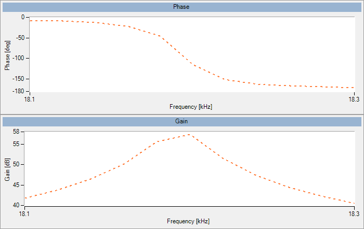

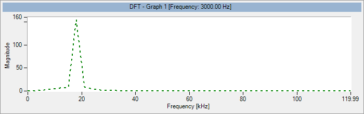

Frequency response is one of the most important MEMS characteristics. MEMS Analysis Tool provides several methods to toggle between time domain and frequency domain. This analysis can be applied to both in- and out-of-plane displacements, as well as to the electrical recording performed by the stroboscopic module.

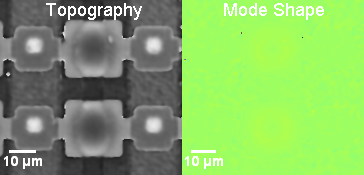

MEMS Analysis Tool enables visualization and analysis of both 4D topography and of mode shape sequences . This second representation is very useful when the amplitudes of vibrations are much smaller than the structural dimensions, and for efficient comparison with simulations results.

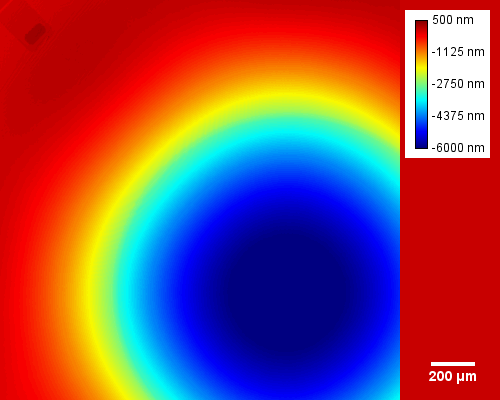

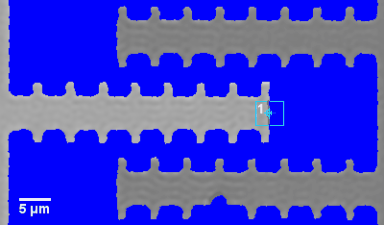

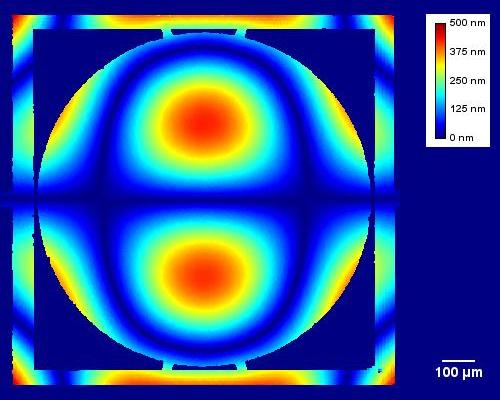

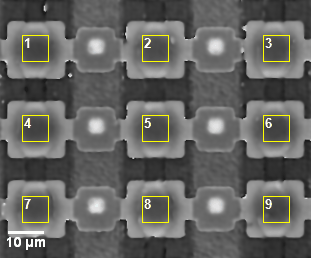

MEMS Tool encompasses efficient tools enabling dynamical 4D data analysis. Profile cuts, grids are among other unique tools that will bring you a new insight in your device, revolutionizing their development. Data can be exported as text files or as video image sequences.
